If you missed part 1, I highly recommend reading through it first to understand the concepts and theory behind the tools we’ll be using, and this part doesn’t make a lot of sense without part 2. Jump back to part 1 or part 2 .

---

Configuring your Firewall to safely point traffic to your services through a reverse proxy

In the last post, we completed configuring a fully functional CoreOS reverse proxy in a VM, but we didn’t finish configuring network, so it doesn’t do much for us yet.

We’re going to start this post by discussing goals, then we’re going to move to a practical application using pfSense as an example. Any Enterprise grade firewall is going to have basically the same features. They might use different terminology, but they all do the same things. If you’re not using pfSense, you may need to search around for something like “Setting up VLAN on firewall {insert firewall brand}”

Goals

Our goal now is to configure the network on our VM and on our firewall to isolate this proxy on its own physical network or more likely on its own VLAN. The main goal here is that from the perspective of the reverse proxy, your internal network should be completely inaccessible except for the explicit paths that you allow for your services to function. Think “Principle of Least Privilege.”

For example, in the Mealie example from the previous post. I don’t want my proxy machine capable of communicating to any other machine anywhere on my network, and I don’t want it talking to the machine hosting mealie on any other port than 9000. I also don’t want it communicating via any other protocol than HTTP. My CoreOS machine should not be capable of creating an SSH connection to the machine hosting my service. If a debian exploit were to pop up suddenly which somehow allows unrestricted access to a certain type of traffic to some random port, I want odds to be in my favor, that it’s not port 9000. I want to enforce this all at the network so that if I were to momentarily drop the machine firewall on a machine on my network, and somehow my reverse proxy had a “bad actor” who had taken up residence, they can’t gain any additional foothold in my network because I have sane networking rules in place.

Quick note on physical networks

We’re going to be using VLANs to create network segmentation here, but separate physical networks and layer 2 routing are a great option too and they provide even more calm safe feelings (though I don’t believe they’re actually safer than VLANs … I’m not a network or network security expert though..). If you have the ability to put your proxy and your backing services on separate physical networks, have at it, that sounds great. The same general concepts apply, you just won’t need to do the VLAN tagging portion. We’re going to assume VLANs for the rest of this guide.

Implementation

Here’s a bullet point list of what we’ll be accomplishing:

• At the firewall:
  • Create a VLAN called UNTRUSTED
  • Create a subnet (192.168.3.0/30)
  • Create a DHCP scope (192.168.3.2 - 192.168.3.2)
  • Create a DHCP reservation for the CoreOS VM (you could alternatively leave DHCP off and use a static IP configured in CoreOS config instead)
• Our host is plugged into a switch, so we will inform our switch about the VLAN (you can skip this if your host plugs directly into your firewall)
• Tag the CoreOS VM’s network adapter for the VLAN ID we defined, this effectively “places” this machine on the VLAN
• Create an alias that pulls cloudflare’s list of IPs
• Create some firewall rules :
  • Create an Internal_Networks alias that includes GUEST and LAN networks (or any internal networks you may have)
  • Create a firewall rule originating from UNTRUSTED that allows all traffic except denies traffic to destination Internal_Networks
  • Create a firewall rulle originating from UNTRUSTED that allows TCP traffic from CoreOS VM to internal service
• Forward incoming traffic through NAT to the reverse proxy

Create VLAN

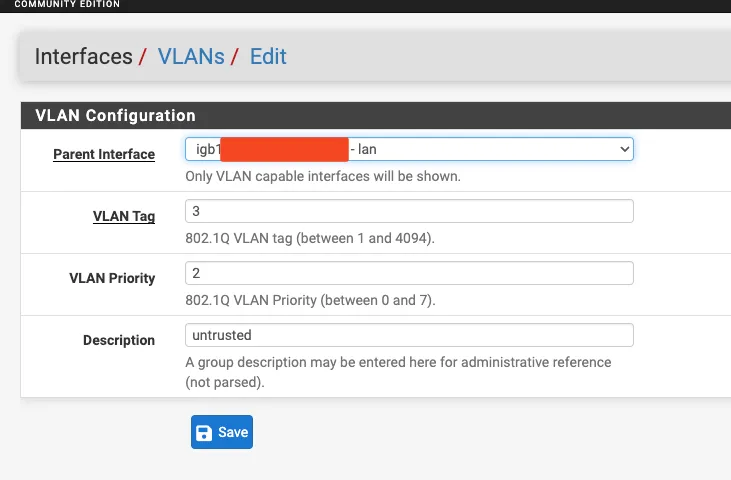

In my case, I’m creating VLAN 3 on the LAN parent interface

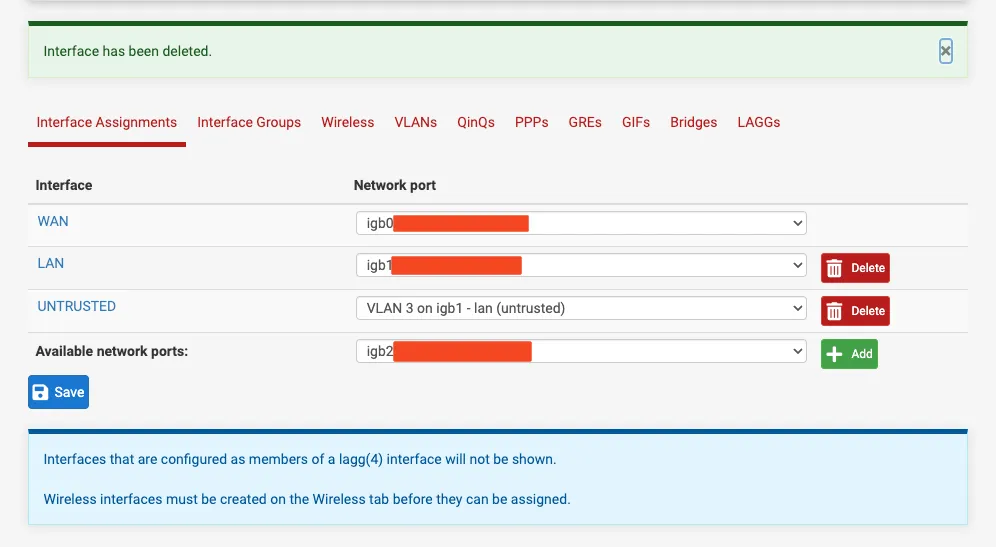

Then I assign it an interface

I’m naming it UNTRUSTED so that no matter where we see the name, it’s always very clear what network this is. I’m looking at this network almost like the concept of a “DMZ” except that we’re actually very careful about this zone, so it wouldn’t be correct to call it “demilitarized.”

Create a subnet

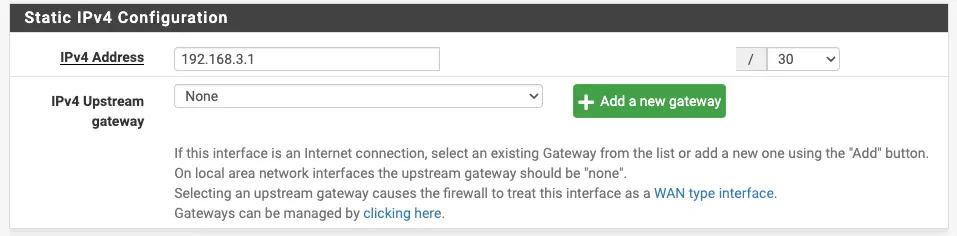

In Interfaces -> UNTRUSTED, enable the interface and create a static IP and corresponding subnet for the firewall. I recommend making the subnet a /30 (details on /30 ) because I only want the firewall and the CoreOS machine to reside on this subnet. If you want to place more machines in this UNTRUSTED zone, feel free to slice it differently.

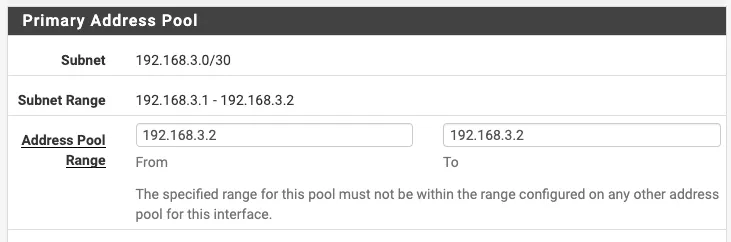

Create a DHCP scope

I’m using DHCP because that’s one less thing that needs to go into my CoreOS config and because I like DHCP. Feel free to go without if you’d like.

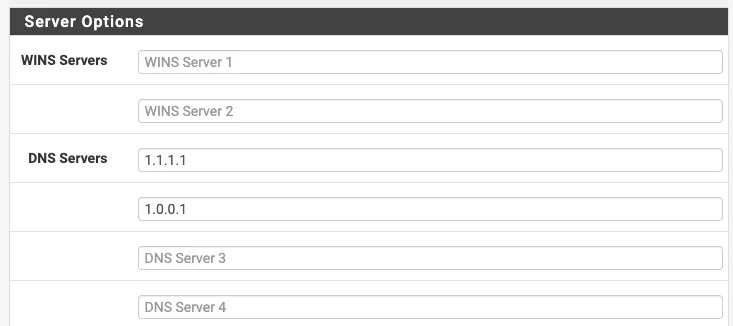

I also use DHCP to hand CoreOS the cloudflare DNS servers. I use a private DNS setup (pihole) for the rest of my network, but in the interest of keeping things isolated, and because this machine doesn’t really need to know about my private network details, I use public DNS here.

Create a DHCP reservation

Just kidding!

We don’t need to create a DHCP reservation because there’s only one possible IP on this network. Keep in mind that if you were to completely remove the VM and create a new one with a new MAC address, you’d likely end up “out of IP addresses” until the previous lease runs out. If you ever do that, you’ll likely need to pop into the firewall and remove the previous DHCP lease before your firewall will consider the one IP available again.

Inform our switch

If our VM host is plugged into a switch, that switch needs to be capable of “speaking vlan” and it’s likely that we need to log into our switch’s management software and “tag” the port that our VM host is plugged into with our VLAN ID. Otherwise, it will be unwilling to pass this traffic along. In my case, my switch is a unifi switch, so I’m following their documentation on “tagging” a port for a VLAN. It doesn’t make sense for me to generalize this step past this, go look up the docs for your switch.

Tag the network adapter

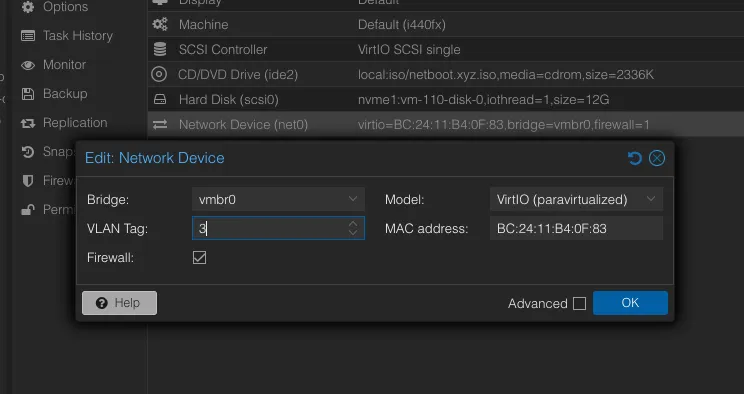

In proxmox (so therefore QEMU) we can tag the VM’s network traffic right on the adapter. I can’t speak for all hypervisors. Again, look up the specific documentation for your hypervisor to find out how to tag your VM’s traffic with the VLAN that you created. Here’s how it looks in proxmox:

Create an alias

We need to pull Cloudflare’s list of IPs because we’re going to whitelist them and block connections from anywhere else. This forces web traffic to enter via URL, only through Cloudflare, that way random scanners out there scanning the whole internet won’t find anything useful at our IP. If you’re not using pfSense, you need to check docs or search for something like “whitelist CIDR block {insert firewall brand}”

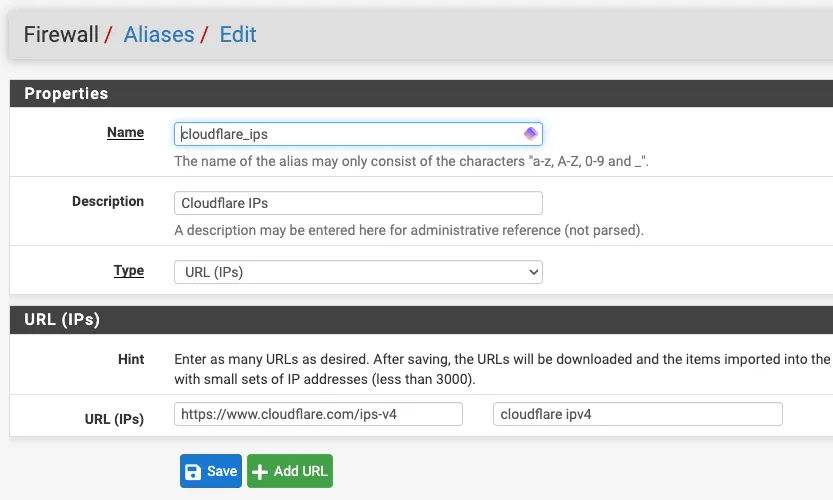

In the case of pfSense, go to Firewall -> Aliases -> URLs and create the following:

Create some firewall rules

We’re almost done!!

Now we need to let our firewall know what should be allowed to talk to what.

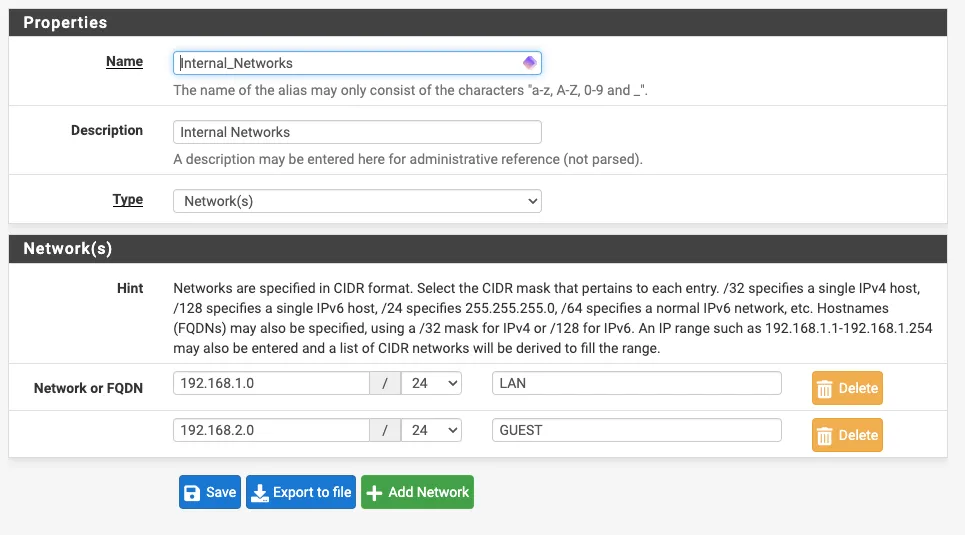

The CoreOS machine can go ahead and have access to the whole internet for all I care, so it can basically talk to whatever it wants, BUT, I don’t want it to access anything on my internal networks. The way we accomplish this in pfSense is by creating another alias. I call mine Internal_Networks, and in it, I list out my LAN network and my GUEST network.

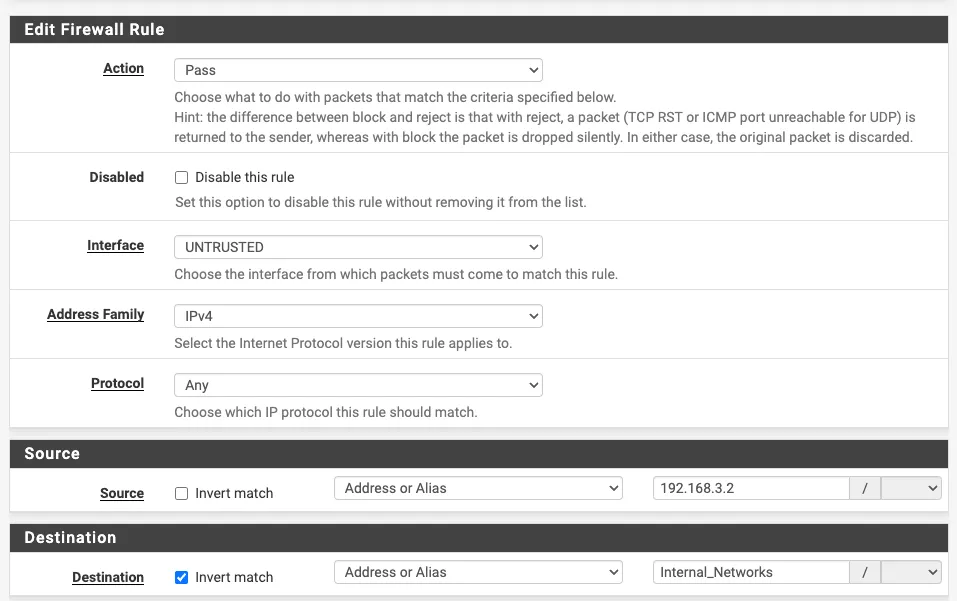

Then I head over to firewall rules and create a new firewall rule on the UNTRUSTED interface that looks like this:

This rule says “As long as it’s NOT destined for an address listed in Internal_Networks, allow any traffic that originates from 192.168.3.2 to pass”

THEN we’re going to create a rule that supersedes this rule. In the case of pfSense, that means I need the next rule to go ABOVE the previous one in the list because they’re evaluated in order from the top to the bottom.

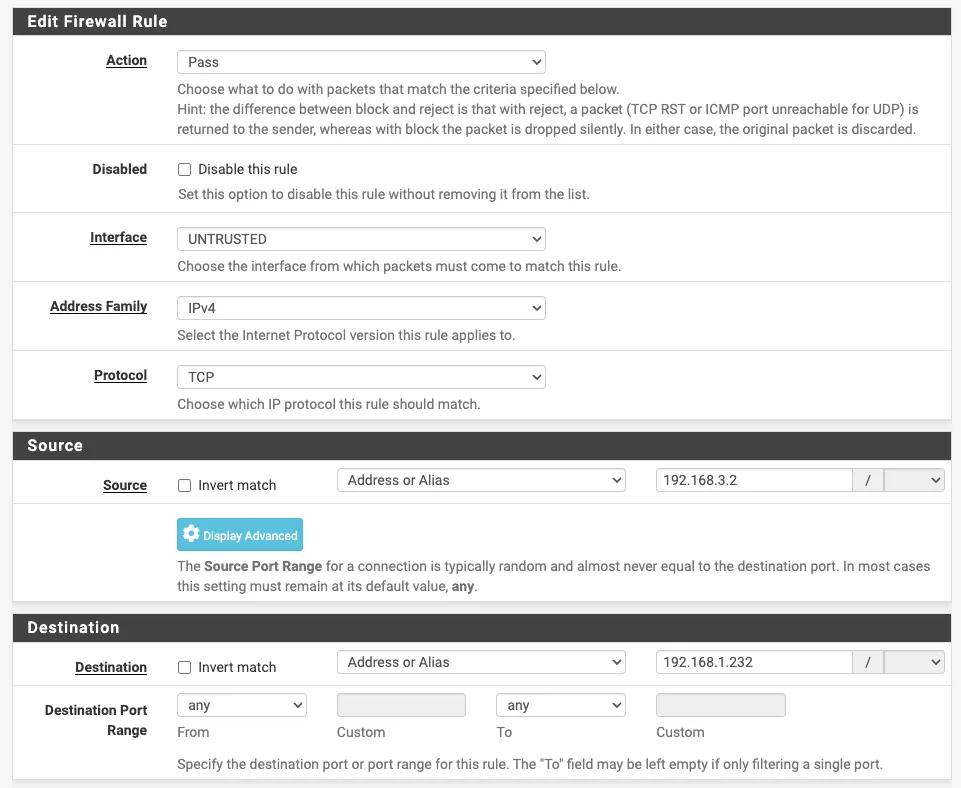

I want this one to say, “If traffic originates from 192.168.3.2 and is destined for my backend service IP, allow it to pass”

It is a great idea to even allow this by specific port. I used to have mine like that, but I felt that it got cumbersome. I use a specific VM to host ONLY these types of services, so in my case, it feels safe to allow all ports through, as long as it’s TCP coming from my proxy. I encourage you to be safer than me and list out rules for each port for each service.

Forward incoming traffic

This is the last step!! (well… you may still have work to do in setting up your domain at cloudflare, setting up dynamic DNS, etc..)

Now we’re going to allow traffic from Cloudflare to pass through our firewall, traverse NAT, and end up at our reverse proxy! I have opted to allow both port 80 and port 443 through the firewall, but as you saw in the previous post, if any port 80 traffic makes it in, it is immediately redirected to port 443 in nginx. There are many valid ways to achieve this. You could not allow it through and instead use Cloudflare to force all traffic to HTTPS before it gets to you, for instance.

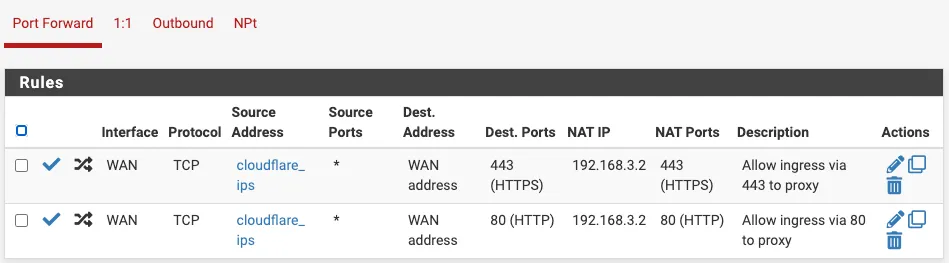

I created two identical port forwards that look like this

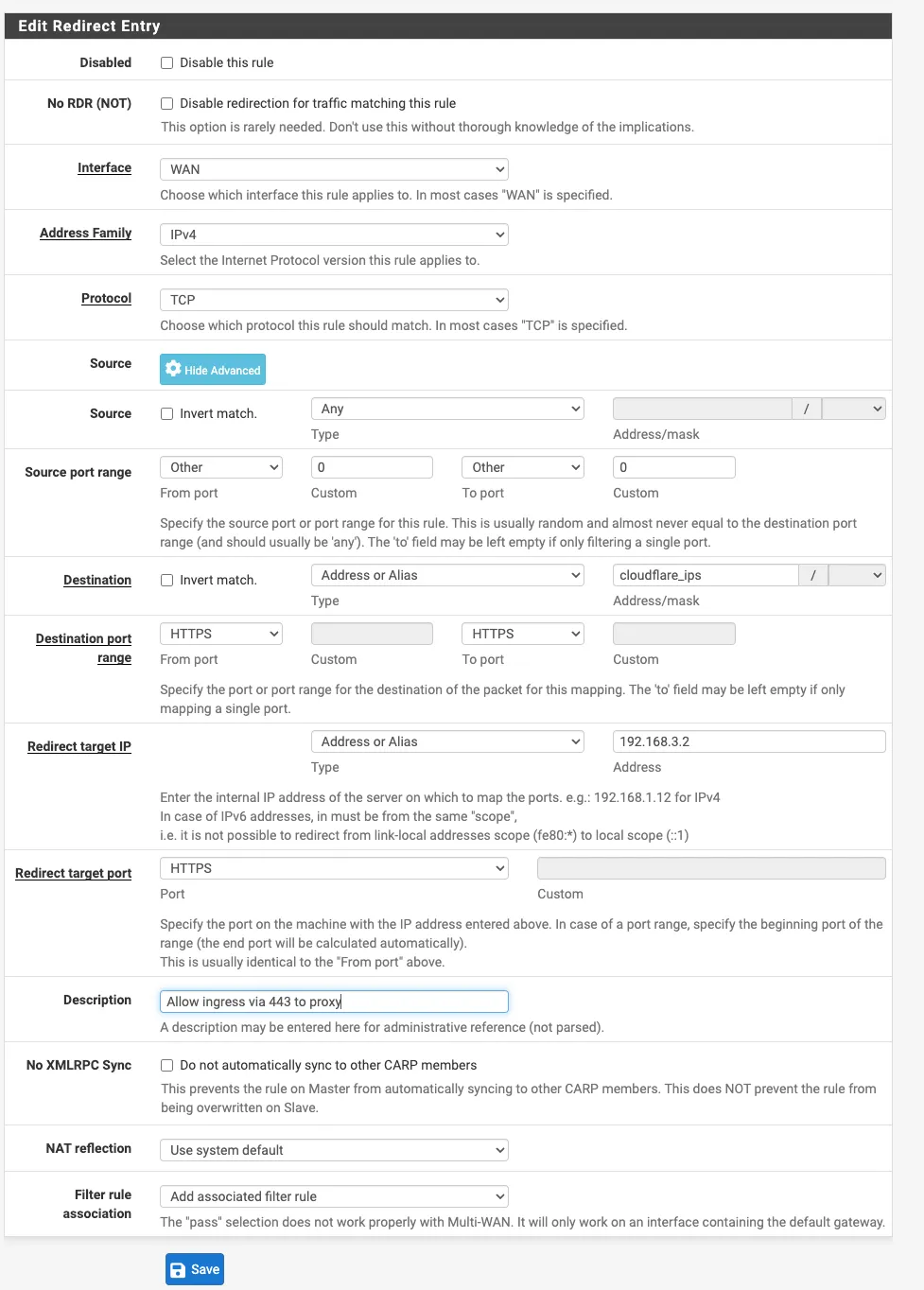

By creating them like this:

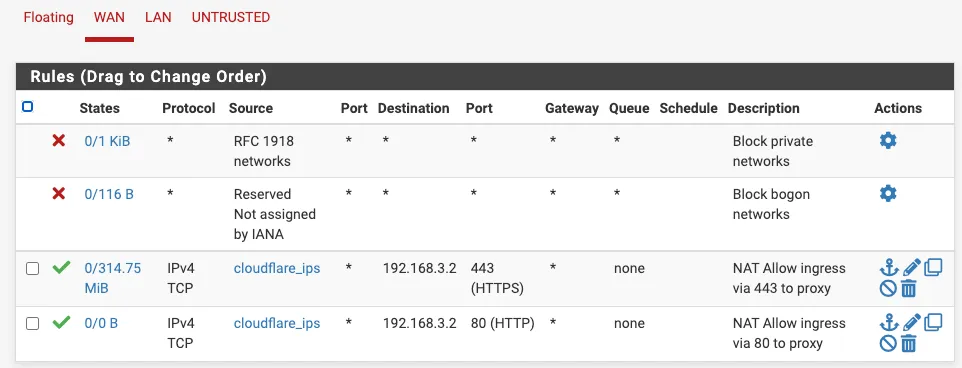

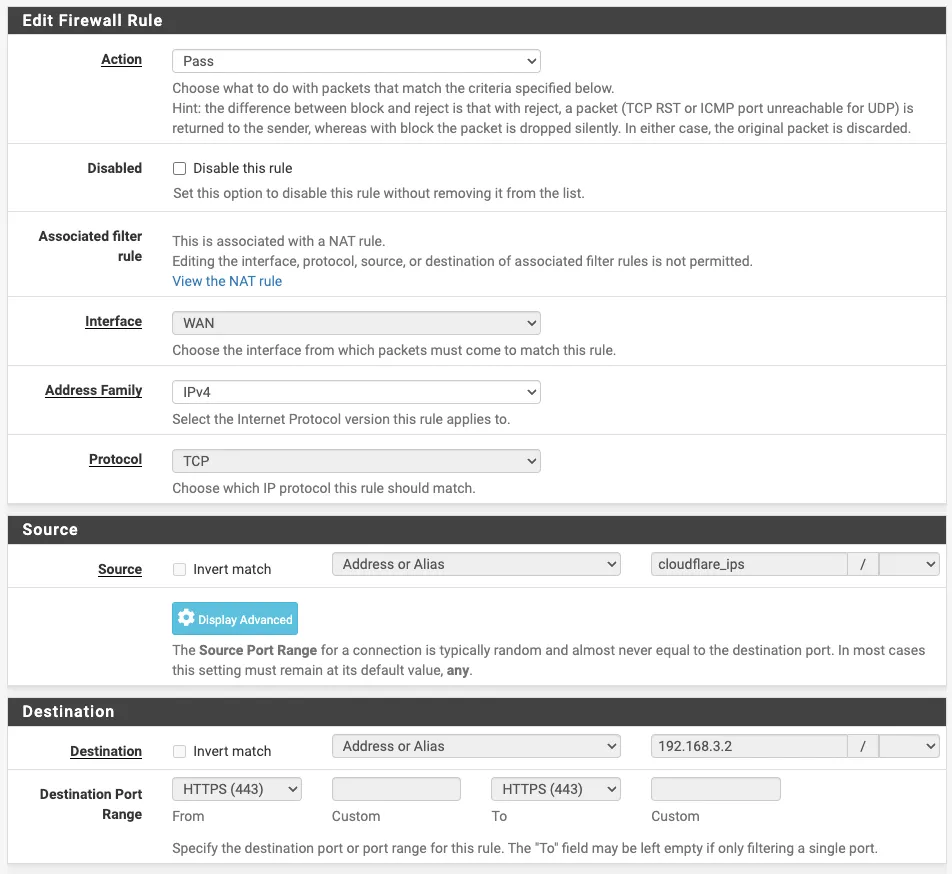

In the case of pfSense, that “Add associated filter rule” option automatically creates firewall rules that look like this.

Using 443 as an example, the result here is a rule that says “As long as Inbound traffic on port 443 came from a Cloudflare IP, forward it through NAT to the reverse proxy. Otherwise, deny.”

We’re done!

You should now be able to point a domain from cloudflare (ORANGE cloud, as in “Cloudflare Proxy Enabled”) to your external IP address. As long as the domain you pointed matches a domain configured in your CoreOS config, your firewall should pass traffic through to your proxy, and your proxy should pass traffic through to your backend service! All without exposing your public IP to the outside world!

If anything is acting unexpectedly, go ahead and log back into the CoreOS box and troubleshoot. Is the traffic hitting CoreOS? Is the traffic hitting your firewall?

Once you’re confident that things are working as they should, you can go ahead and remove that pesky user by commenting out that passwd section of your CoreOS config file. If you used LetsEncrypt, you should also go back and make sure STAGING is set to false in your swag config.

What’s next?

In the next installment, we’ll be walking through building a firewall and configuring pfSense and we’ll be using pfSense to dynamically update cloudflare with our dynamic IP address. We will also be configuring internal DNS to skip the internet for local traffic, this way you can use the same domain name internally and traffic will only traverse your internal network.

If you’ve made it this far, I’d bet you can figure out how to handle at least the dynamic IP part right now, on your own 😉

Hint: Some firewalls can talk directly to the Cloudflare API to update the IP in your DNS entries 😬
